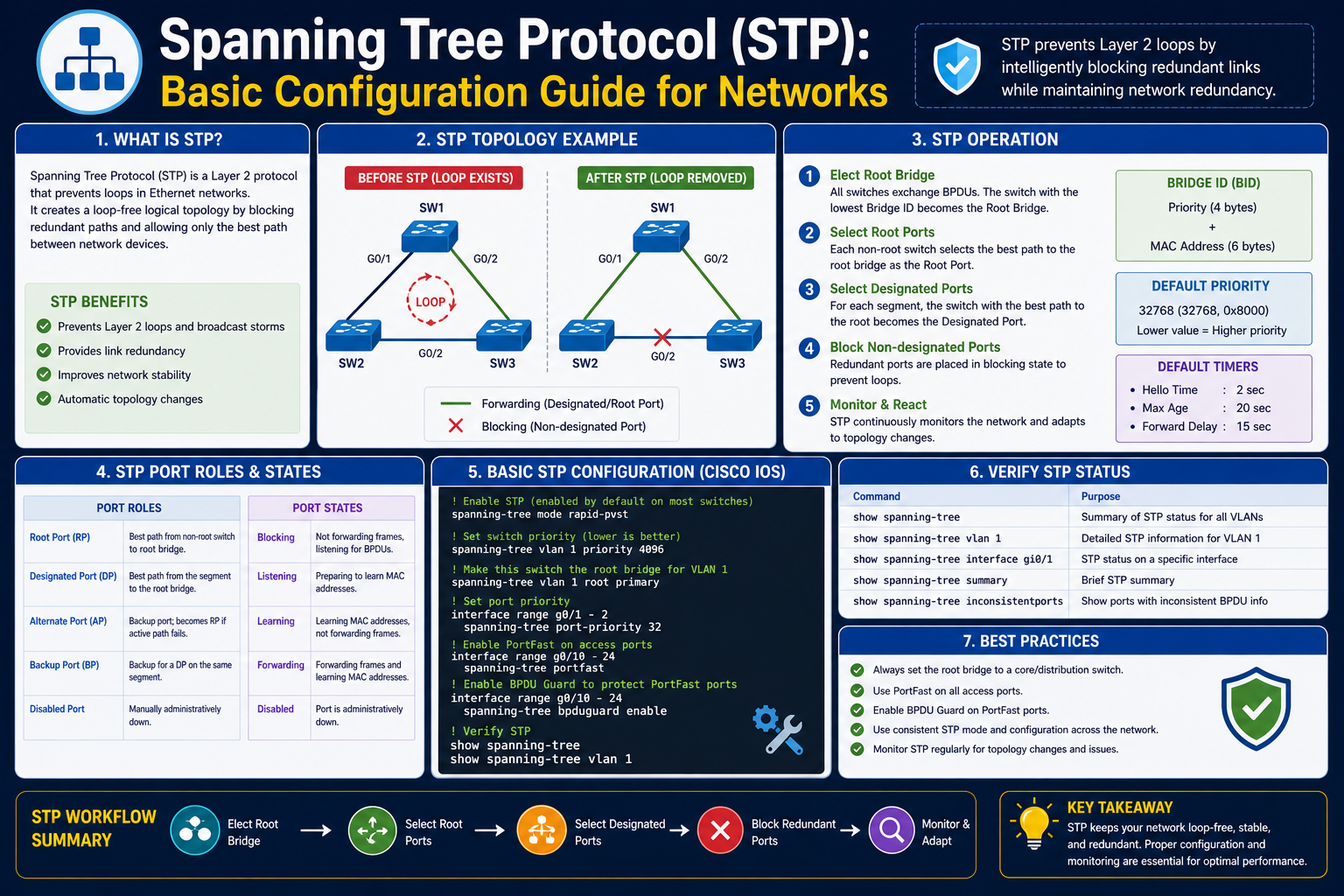

A switched Ethernet network needs redundancy, but a redundant Layer 2 path can create a forwarding loop. Ethernet broadcasts and unknown-destination frames may circulate, MAC tables can flap, and a small wiring mistake can affect much more than the two involved switches. Spanning Tree Protocol (STP) maintains a loop-free active topology by deciding which bridge ports forward and which redundant paths stay unavailable until the network needs them.
Configuring STP well is not just enabling a protocol. It means intentionally selecting a root, understanding how cost and bridge identifiers select paths, and verifying how the chosen implementation reacts when a link fails or an unexpected switch appears.
Why an Ethernet loop becomes a network-wide problem
Unlike an IP packet, an ordinary Ethernet frame has no hop-limit field that every bridge decrements. A broadcast sent into a physical Layer 2 loop can be replicated and circulate repeatedly while different switches keep relearning the source MAC address on different ports. The resulting broadcast amplification and MAC instability can exhaust link and control-plane resources.
STP does not remove cables. It creates a logical tree over the connected bridges, preserving enough links to reach the participating LAN while placing redundant links into a nonforwarding role. If a forwarding link fails, STP or its faster successor can reconverge and use a previously unused path, provided the remaining physical topology still connects the affected segments.
The important trade-off is that STP protects against loops by withholding some available link capacity. It is not link aggregation or multipath load balancing. An EtherChannel or comparable aggregated-link mechanism solves a different part of the redundancy problem and still needs a coherent topology design.
Elect the root bridge deliberately
Each spanning-tree instance elects a root bridge using bridge identifier information, which includes a configurable priority value and MAC-address-related tie breaking. A bridge advertising a better (numerically lower) bridge identifier can replace the previous root if the topology permits it. The root becomes the reference point for calculating least-cost paths through the tree.
In an enterprise campus, the root is usually placed on a stable distribution or core switch, often with a secondary root-designated switch ready to take over. Letting a newly attached access switch become root accidentally can redirect large traffic flows through slower access links or unexpected segments. Configure a suitable priority on the intended root devices, then verify the actual election per VLAN or instance.
Avoid treating “root priority 4096” as universally mandatory. The supported priority increments and effective bridge identifier behavior depend on STP mode, including extended system ID conventions. Check what the platform actually accepts and reports.
Port roles explain the forwarding topology
In an RSTP-style model, a root port is the nonroot bridge’s best path toward the root. A designated port advertises the best path on a given LAN segment. An alternate port provides a backup path that is kept from forwarding. Other roles and legacy port-state terminology differ by protocol version and vendor, so do not equate a port’s role with its transitional state.
A root bridge has no root port for that instance; its active links to segments are normally designated. On each nonroot switch, the root port is selected by comparing received path information, accumulated path cost, sender identity and port identity in defined order. This is more precise than saying “the fastest port always wins.” Link speed influences default cost, but manual costs, upstream paths and tie breakers can change the result.
| Observation | What it suggests | Next useful question |
|---|---|---|
| Switch is the elected root | Its bridge identifier won this instance | Was that device intended to be root? |
| Port is root/forwarding | It is the best path toward the root | Does the accumulated path cost match design? |
| Port is alternate/discarding | Redundant path is available but not forwarding | Is the backup connected and ready for failover? |
| Port is designated/forwarding | It is the selected path for that segment | What would happen if a downstream superior BPDU arrived? |
| Port appears inconsistent or err-disabled | An enhancement or mismatch intervened | Is it root guard, BPDU guard, PVID or another control? |
Apply CCNA spanning-tree decisions to select the root bridge and reason about forwarding or alternate switch paths. The commands in this section turn those design decisions into a configuration that can be verified.
STP, RSTP and per-VLAN behavior are not identical
Classic IEEE 802.1D STP describes blocking, listening, learning, forwarding and disabled states. Rapid Spanning Tree Protocol (RSTP, 802.1w lineage) uses a simpler state model—discarding, learning and forwarding—along with different proposal/agreement behavior to accelerate compatible topology transitions. Platform-specific Rapid PVST+, MST and interoperating legacy segments affect the exact details.
Do not promise a fixed number of seconds for every failover. A point-to-point link with suitable RSTP capabilities can converge much faster than classic timer-based STP, but a shared segment, legacy neighbor, misconfiguration or port role transition may still take longer. Measure with the actual switch family and topology.
Many campus switches run separate spanning-tree behavior per VLAN or map multiple VLANs to an MST instance. One physical trunk can therefore forward a VLAN on one path while a different VLAN uses another. Commands must be scoped to the affected VLAN or instance; a healthy result for VLAN 10 does not establish that VLAN 20 is healthy.
A cautious configuration workflow
Start by drawing the Layer 2 topology and identifying the intended root and backup. Check for physical loops, port-channel consistency and switch control boundaries. Choose the appropriate STP mode for the platform and connected peers. Configure root priorities and enable the protocol on the intended VLANs or instances without disabling protection merely to make a blocked link pass traffic.
Treat switch-facing, endpoint-facing and boundary-facing ports differently. An ordinary endpoint access port may use PortFast/edge behavior to avoid unnecessary connection delay, but only where bridging devices are not expected. BPDU guard can react to unexpected BPDUs on designated edge ports. Root guard can constrain who may become an upstream root on selected switch-facing links. These are complementary controls, not interchangeable commands.
In an access/distribution hierarchy, Spanning Tree Root Guard can prevent a downstream switch from becoming the root when that downstream segment should not advertise superior BPDUs. A root-inconsistent state indicates the protection has triggered; enabling it on a legitimate upstream path can interrupt connectivity.
In Cisco CCNA 200-301 spanning-tree scenarios, a Cisco-style verification sequence may include show spanning-tree vlan <vlan-id>, checking the root ID, root port, port roles and designated identifiers; show spanning-tree interface or equivalent per-interface data; and the platform’s inconsistent-port and topology-change information. Record the state before making a change so you can distinguish a desired topology adjustment from a surprise.
Troubleshoot the symptom before lowering costs
If a formerly forwarding trunk blocks, check whether STP is performing its intended job. Identify which bridge is root and compare the port’s advertised root information with the preferred path. Look for superior BPDUs, VLAN/native-VLAN mismatches, a newly attached switch and port-channel inconsistencies. Changes to link cost are not the right first response if the problem is a root election mistake or a mismatched trunk.
If the network shows intermittent packet loss and MAC flapping, examine logs for frequent topology changes and newly forwarded paths. Spanning tree can react to a failing physical link repeatedly, generating symptoms beyond the faulty interface. Interface error counters and physical cabling evidence should be reviewed with STP events.
When a BPDU guard event disables an edge port, confirm what device is actually connected before re-enabling. Automatically recovering a repeatedly err-disabled port without fixing the attached bridging loop can turn a controlled incident into a campus outage.
Redundancy still needs a tested failure path
A predictable design documents the root per VLAN or MST instance, intended alternate paths, edge protections, expected convergence behavior and escalation procedure. Test a planned link failure on a controlled window, confirm that backup roles transition as expected and verify application traffic after the network reconverges.
STP protects Ethernet by making intentional decisions about redundant paths. It works best when the root is a design choice rather than an election surprise, link costs match real topology intent, and guard features are placed according to the trust boundary. The decisive evidence is the switch’s actual role/state output and the observed failover—not a screenshot of configured priorities alone.
