Jumbo frames refer to data packets in a computer network that are larger than the conventional size used in standard Ethernet communication. In most typical networking environments, data is transmitted in structured units called frames, which carry the actual information from one device to another. A jumbo frame is simply a frame that exceeds the standard size limit, allowing more data to be carried in a single transmission. This approach is mainly used in high-performance networks where efficiency and speed of large data transfers are important factors.
Understanding How Data Frames Work in Networking
To understand jumbo frames clearly, it is important to first understand how data moves across a network. Whenever a device sends information, that data is broken down into smaller pieces before transmission. These pieces are packaged into structured units called frames or packets. Each frame contains not only the actual data but also additional control information that helps it reach the correct destination. This includes addressing details, error-checking information, and other metadata required for proper delivery.
Standard Frame Size and Its Structure
In traditional Ethernet networking, there is a commonly accepted maximum size for these frames. This limit is known as the Maximum Transmission Unit. In most standard configurations, this limit is 1500 bytes of payload data. However, the full frame is slightly larger when accounting for additional components such as headers and error-checking information. These extra elements ensure that the data is properly routed and verified during transmission, maintaining reliability in communication between devices.
Breaking Down the MTU Concept
The Maximum Transmission Unit defines the largest amount of data that can be sent in a single frame without fragmentation. In simpler terms, it determines how big each data packet can be before it must be broken into smaller pieces. While smaller MTU sizes help maintain compatibility across different systems, they can also result in increased overhead because more packets are needed to transmit the same amount of data. This is where performance considerations begin to influence networking design choices.
Introduction to Jumbo Frame Concept
A jumbo frame is any data frame that exceeds the standard MTU limit of 1500 bytes. Unlike the traditional frame size defined by networking standards, jumbo frames do not have a single fixed size. Instead, their size can vary depending on network design and equipment capability. In most practical environments, jumbo frames are commonly configured around 9000 bytes, although some systems may support even larger values under specific conditions.
Why Jumbo Frames Were Introduced
The primary reason for introducing jumbo frames is to improve efficiency in modern networks. As data usage has increased significantly due to applications like cloud computing, video streaming, and large-scale data storage, the need for more efficient data transfer methods has become essential. By increasing the amount of data carried in a single frame, jumbo frames reduce the number of transmissions required, which can improve overall network performance.

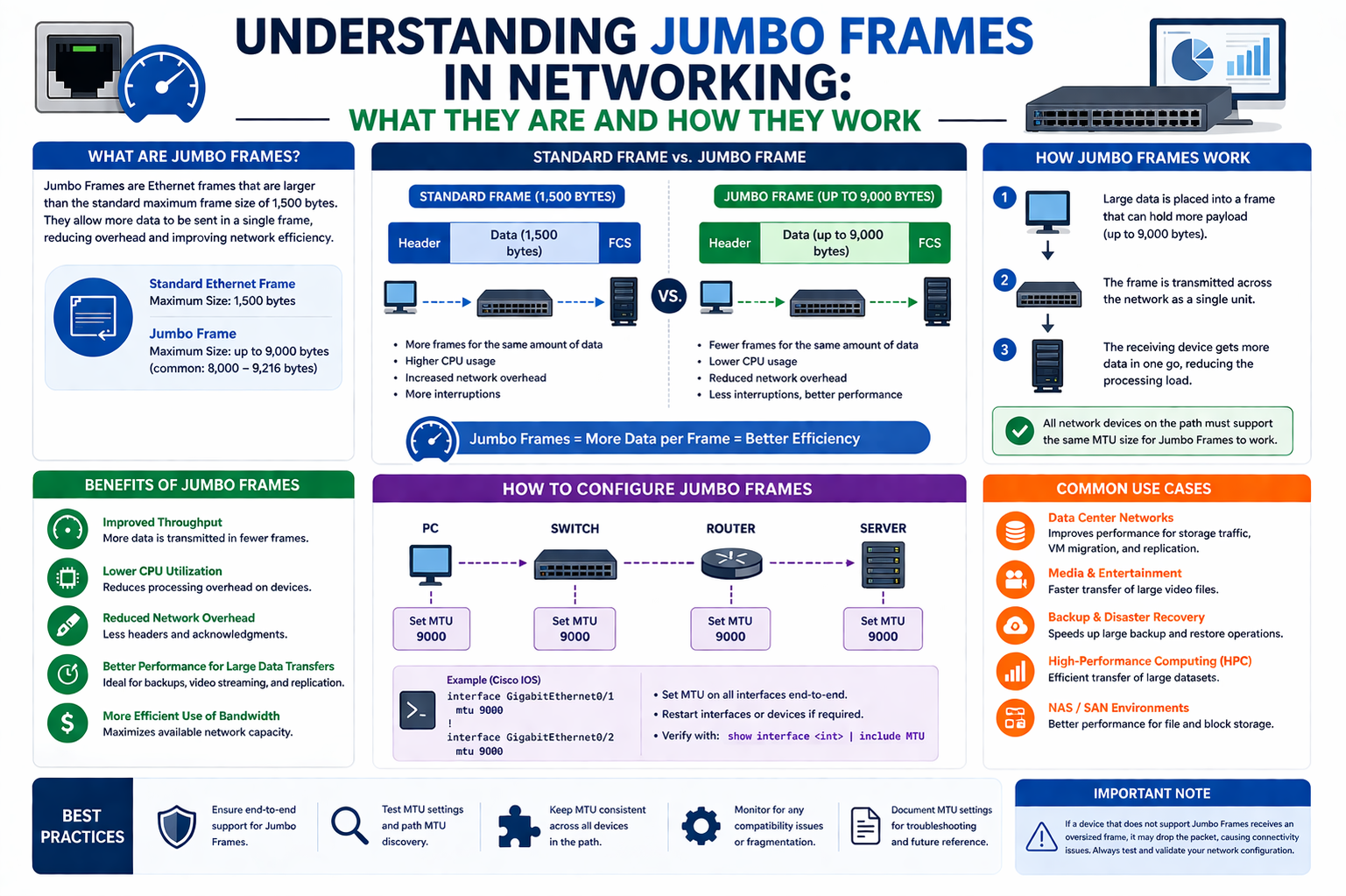

The Structure Difference Between Standard and Jumbo Frames
Although both standard frames and jumbo frames carry similar types of information, the key difference lies in the amount of payload data they can transport. A standard frame carries a relatively small amount of data per transmission, while a jumbo frame carries significantly more. This means that fewer frames are needed to send the same volume of information, which can reduce processing overhead on networking devices such as switches and routers.
How Jumbo Frames Improve Data Efficiency
When data is transmitted across a network, each frame requires processing by networking hardware. This includes reading headers, checking for errors, and routing the frame to its destination. With standard frames, this process is repeated many times for large data transfers. Jumbo frames reduce this repetition by packaging more data into fewer frames. As a result, network devices spend less time processing overhead information and more time handling actual data transfer.
Analogy for Understanding Jumbo Frames
A simple way to understand jumbo frames is to compare them with transportation logistics. Imagine a situation where multiple small packages need to be delivered to complete a single order. Each package requires separate handling, tracking, and delivery effort. Now compare that with sending all items in one large shipment. The second option is far more efficient because it reduces handling time and minimizes the chances of items getting lost or delayed. Similarly, jumbo frames reduce the number of individual transmissions required in a network.
Role of Packet Processing in Network Performance
Every time a data packet is sent or received, the network device must perform processing tasks. These tasks include verifying packet integrity, reading routing information, and ensuring correct delivery. When many small packets are used, the processing workload increases significantly. Jumbo frames help reduce this burden by decreasing the number of packets that need to be handled. This can lead to smoother performance in environments that handle large volumes of data.
Common Sizes of Jumbo Frames in Real Networks
Although jumbo frames can theoretically vary in size, most real-world implementations follow certain common practices. A widely used size is around 9000 bytes, which provides a balance between efficiency and compatibility. Some specialized environments may use larger or slightly smaller configurations depending on hardware limitations and performance requirements. However, consistency across all devices in a network is essential for proper functioning.
Early Advantages of Larger Frame Sizes
Even before exploring advanced performance benefits, the basic advantage of jumbo frames is already clear: fewer transmissions are needed to move the same amount of data. This reduction in transmission count helps lower network congestion and improves data flow efficiency. It also reduces the frequency of interruptions caused by packet handling processes, allowing smoother communication between connected devices.
Why Jumbo Frames Matter in Modern Networking
Modern digital systems rely heavily on fast and efficient data exchange. Applications that involve large file transfers or continuous data streaming benefit significantly from optimized packet structures. Jumbo frames play an important role in supporting these requirements by minimizing unnecessary overhead and improving the way data moves across high-capacity networks.
Preparing for Deeper Understanding in Next Sections
The concept of jumbo frames becomes more meaningful when examined in relation to performance improvements, system compatibility, and configuration requirements. While the basic idea focuses on increasing packet size, the real impact lies in how this change affects network efficiency, hardware behavior, and data flow optimization. These aspects become more detailed in the following sections.
How Jumbo Frames Improve Network Throughput
Jumbo frames improve network throughput by allowing a larger amount of data to be transmitted in a single frame. Throughput refers to the actual amount of useful data successfully delivered over a network in a given time. In traditional frame structures, more frames are required to transfer the same volume of information, which increases processing overhead and reduces efficiency. With jumbo frames, fewer transmissions are needed, which allows network devices to focus more on delivering data rather than handling repetitive frame processing tasks. This results in smoother and more efficient communication, especially in environments where large files or continuous data streams are common.
Reduction of Packet Overhead in Data Transmission
Every data frame carries not only the actual payload but also additional information such as headers and error-checking data. This extra information is known as overhead. While necessary for correct delivery, overhead does not contribute to the actual content being transmitted. In standard frame sizes, overhead makes up a larger proportion of total transmitted data because many small frames are used. Jumbo frames reduce this inefficiency by increasing the amount of payload carried in each frame, meaning overhead is spread across more data. This leads to more efficient use of available bandwidth and reduces unnecessary repetition of control information.
Lower CPU Utilization in Network Devices
Network devices such as routers, switches, and servers must process every single frame that passes through them. This processing includes tasks like reading headers, checking integrity, and forwarding data to the correct destination. When networks rely on smaller frames, these tasks are repeated frequently, increasing CPU usage. Jumbo frames reduce the number of frames that need processing, which lowers the workload on network hardware. This reduction in processing demand allows devices to operate more efficiently and dedicate more resources to actual data handling rather than repetitive administrative tasks.
Improved Efficiency in High-Performance Networks
In high-performance environments such as data centers and enterprise networks, efficiency is critical. These systems often handle massive amounts of data simultaneously. Jumbo frames help improve efficiency by reducing the number of individual packet transactions required for large data transfers. This means fewer interruptions in data flow and more consistent performance under heavy network load. As a result, systems can maintain higher levels of productivity and stability even when handling demanding workloads.
Impact on Network Latency Reduction
Latency refers to the time it takes for data to travel from one point to another in a network. Each packet that travels across the network introduces processing delays, even if they are very small. When many small packets are used, these delays accumulate. Jumbo frames reduce the total number of packets needed for data transfer, which in turn reduces the number of processing steps involved. This can help lower overall latency, especially in environments where large continuous data transfers are common, such as streaming or backup systems.
Bandwidth Optimization Through Larger Frames
Bandwidth represents the maximum capacity of a network connection. However, not all of this capacity is always used efficiently. In standard frame communication, a portion of bandwidth is consumed by overhead and packet repetition. Jumbo frames optimize bandwidth usage by increasing the proportion of useful data within each transmission. This means that more of the available network capacity is used for actual data rather than control information, leading to improved overall efficiency.
Reduced Packet Fragmentation in Data Transfer
When data exceeds the standard frame size, it must be broken into smaller fragments before transmission. This process is known as fragmentation. Fragmentation increases processing complexity because each piece must be individually handled and later reassembled at the destination. Jumbo frames reduce or eliminate the need for fragmentation by allowing larger data chunks to be sent in a single frame. This simplifies data handling and reduces the risk of errors or delays during reassembly.
Simplifying Data Flow in Large Networks
Large-scale networks often involve multiple devices communicating simultaneously. Managing data flow in such environments can become complex when a high number of small frames are constantly being transmitted. Jumbo frames simplify this process by reducing the total number of frames moving through the network. With fewer frames to manage, network devices can handle traffic more efficiently, leading to smoother data flow and reduced chances of congestion.
Enhancing Performance in Storage Systems
Storage systems such as network-attached storage and storage area networks frequently transfer large files between devices. These environments benefit significantly from jumbo frames because large data transfers can be completed using fewer packets. This reduces overhead and improves transfer speed between storage devices and servers. As a result, backup operations, file synchronization, and large database transfers can be completed more efficiently.
Impact on Video Streaming and Multimedia Applications
Applications that rely on continuous data flow, such as video streaming and multimedia delivery, also benefit from jumbo frames. These applications require consistent and uninterrupted data transfer to maintain quality. By reducing packet overhead and processing delays, jumbo frames help maintain smoother streaming performance. This can reduce buffering and improve overall user experience, especially in high-resolution or real-time streaming scenarios.
Consistency in Data Transmission
Consistency in data transmission is important for maintaining stable network performance. Smaller frames increase the number of transmission events, which can lead to variability in processing time. Jumbo frames reduce the number of transmission events, making data flow more predictable. This consistency helps improve performance stability across the network, particularly under heavy load conditions.
Efficiency Gains in Virtualized Environments
Virtualized environments, where multiple virtual machines operate on shared physical hardware, generate significant internal network traffic. Jumbo frames help improve efficiency in these environments by reducing the number of packets exchanged between virtual machines and physical hosts. This leads to better resource utilization and improved communication between virtual systems, enhancing overall virtualization performance.
Balancing Frame Size and Network Compatibility
While larger frames offer performance benefits, they must be balanced with compatibility considerations. Not all network devices support jumbo frames, and inconsistent configuration can lead to communication issues. Therefore, proper alignment of frame sizes across all devices is necessary to ensure smooth operation. When correctly implemented, jumbo frames can significantly enhance performance without disrupting compatibility.
Role in Reducing Network Congestion
Network congestion occurs when too much data is transmitted simultaneously, leading to delays and packet loss. Jumbo frames help reduce congestion by decreasing the number of packets traveling through the network. With fewer packets, there is less competition for network resources, which helps maintain smoother data flow even during peak usage periods.
Improving Overall Data Transfer Speed
One of the most noticeable benefits of jumbo frames is improved data transfer speed in suitable environments. By reducing the number of frames required to transmit the same amount of data, overall transfer time can be decreased. This improvement is especially significant in systems that regularly handle large file transfers or continuous data streams.
Preparing for Implementation Challenges
Despite their advantages, jumbo frames must be carefully implemented to avoid potential issues. Proper configuration across all network devices is essential to ensure compatibility and prevent data transmission errors. Understanding both the benefits and limitations of jumbo frames is important for achieving optimal network performance without introducing instability.
Hardware Requirements for Jumbo Frames Support
For jumbo frames to function correctly, network hardware must be capable of handling larger-than-standard packet sizes. This includes switches, routers, network interface cards, and even storage devices in some environments. Not all older equipment supports increased frame sizes, which means hardware compatibility becomes a key factor before implementation. Devices that are not designed for jumbo frames may either ignore oversized packets or drop them entirely, leading to communication failures. Because of this, organizations must verify that all critical network components are capable of supporting the desired MTU configuration before enabling jumbo frames.
Importance of End-to-End Compatibility in Networks
Jumbo frames require consistent configuration across the entire communication path. This means every device involved in transmitting data—from the source system to intermediate networking equipment and finally to the destination—must support the same frame size. If even one device in the path does not support the configured MTU, it can result in packet loss or transmission failure. This end-to-end requirement makes planning essential, especially in complex environments where multiple network segments and devices from different manufacturers are involved.
Frame Mismatch Issues in Network Communication
One of the most common problems with jumbo frames is frame mismatch. This occurs when a device sends a large frame to another device that is not configured to handle that size. When this happens, the receiving device may drop the packet or fail to process it correctly. Frame mismatch can lead to intermittent connectivity issues that are often difficult to diagnose. These problems usually appear as slow performance, incomplete data transfers, or unexpected network interruptions, making proper configuration alignment extremely important.
Impact of Mixed Hardware Environments
In real-world networks, it is common to find a mix of older and newer hardware operating together. This mixed environment can create challenges for jumbo frame deployment because not all devices support the same capabilities. Some older systems may have fixed frame size limits, while newer devices offer flexible configuration options. When these systems are connected, inconsistencies can arise unless careful configuration management is applied. Ensuring uniform support across all hardware becomes essential to prevent performance degradation.
Configuration Errors and Their Effects
Even when hardware supports jumbo frames, incorrect configuration can still lead to problems. A simple mistake in setting the MTU value on one device can disrupt communication across the entire network path. These errors may occur during manual setup or automated deployment processes. Since jumbo frames rely on consistency, even a single misconfigured device can cause packet loss or connectivity issues. Regular validation of configuration settings is therefore an important part of maintaining a stable network environment.
Firmware Updates and Unexpected Changes
Network devices often receive firmware updates to improve performance or fix security vulnerabilities. However, these updates can sometimes reset or modify existing configuration settings, including MTU values. If a firmware update changes the frame size configuration without proper review, it can introduce inconsistencies in a previously stable network. This makes it important to verify network settings after updates to ensure that jumbo frame configurations remain intact and consistent across all devices.
Challenges in Multi-Network Environments
Modern IT infrastructures often include multiple network environments such as local networks, data centers, and cloud-based systems. Each of these environments may have different hardware capabilities and configuration standards. Implementing jumbo frames across such diverse systems requires careful coordination. If one environment supports jumbo frames while another does not, data transfer between them can become inefficient or fail entirely. This makes unified configuration policies important in multi-network setups.
Role of Virtualized Systems in Frame Configuration
Virtualized environments add another layer of complexity to jumbo frame deployment. Virtual machines often rely on virtual switches and software-defined networking components that must also support larger frame sizes. If the underlying physical infrastructure supports jumbo frames but the virtual layer does not, or vice versa, performance issues may occur. Ensuring alignment between physical and virtual network settings is necessary for stable operation in virtualized systems.
Diagnosing Jumbo Frame-Related Issues
When network problems arise, it is important to determine whether jumbo frames are involved. Troubleshooting typically begins with verifying MTU settings across all connected devices. If mismatches are found, correcting them often resolves connectivity issues. In addition to configuration checks, network testing tools can help identify where packet loss or fragmentation is occurring. By analyzing traffic behavior, administrators can isolate whether jumbo frame settings are contributing to the problem.
Use of Ping Testing for MTU Verification
Ping testing is a simple but effective method for checking network connectivity and MTU compatibility. By sending test packets between devices, administrators can observe whether communication is successful and whether packet sizes are being handled correctly. Adjusting the size of ping packets can help identify the maximum supported transmission unit between devices. If larger packets fail to transmit, it may indicate that jumbo frame support is not properly configured across the network path.
Network Monitoring Tools for Frame Analysis
Advanced network monitoring tools can provide detailed insights into how data packets are being transmitted. These tools allow administrators to inspect packet sizes, transmission routes, and potential points of failure. By analyzing captured network traffic, it becomes possible to detect fragmentation issues or dropped packets related to incorrect frame sizing. This level of visibility is essential for maintaining stable jumbo frame configurations in complex environments.
Performance Trade-Offs in Real Deployments
While jumbo frames can significantly improve performance, they are not always suitable for every network. In some cases, the overhead of maintaining compatibility across all devices may outweigh the performance benefits. Additionally, if a network includes a large number of incompatible devices, the effort required to standardize configurations may introduce operational complexity. Therefore, the decision to use jumbo frames must be based on a careful evaluation of network structure and requirements.
Importance of Standardized Configuration Policies
To successfully implement jumbo frames, organizations must establish consistent configuration policies across all network devices. This includes defining a standard MTU size and ensuring that it is applied uniformly. Without standardization, inconsistencies can quickly lead to performance issues and communication failures. Clear documentation and configuration management practices help maintain stability and reduce the risk of misalignment across systems.
Preparing for Stable Jumbo Frame Deployment
Successful deployment of jumbo frames requires planning, compatibility checks, and ongoing monitoring. It is not simply a matter of increasing packet size but involves ensuring that every part of the network can support the change. By addressing hardware limitations, configuration consistency, and monitoring practices, organizations can reduce the risk of issues and create a stable environment for high-efficiency data transfer.
How Jumbo Frames Are Configured in Network Systems
Configuring jumbo frames depends on the specific hardware and operating system being used, but the overall process follows a similar pattern across most environments. The main goal is to increase the Maximum Transmission Unit value so that devices can handle larger packets. This configuration is usually applied at the interface level, meaning each network port or adapter must be adjusted individually. Proper configuration ensures that devices can send and receive larger frames without fragmentation or data loss.
Setting the MTU Value on Network Interfaces
The key step in enabling jumbo frames is increasing the MTU value on network interfaces. The MTU defines the maximum size of a packet that can be transmitted. By default, most systems use a standard MTU value, but this must be increased to support jumbo frames. Once the MTU is adjusted, the network interface can handle larger data packets, allowing more efficient transmission of information across compatible devices.
Ensuring Consistency Across All Devices
One of the most important aspects of configuring jumbo frames is maintaining consistency. Every device that communicates within the same network path must be set to the same MTU value. If one device is configured differently, it can cause packet drops or communication failures. This includes not only computers and servers but also switches, routers, and storage systems. Consistent configuration ensures smooth data flow and prevents mismatches that can disrupt communication.
Verification of Configuration Changes
After adjusting MTU settings, it is essential to verify that the changes have been applied correctly. This verification ensures that the network is properly configured to support larger frames. Administrators often check interface settings or use diagnostic tools to confirm that the updated MTU value is active. Without verification, there is a risk that incorrect settings may remain unnoticed, leading to potential performance issues.
Testing Network Connectivity After Configuration
Once jumbo frames are enabled, testing network connectivity is an important step. This testing helps confirm that devices can communicate using the new frame size. A common method involves sending test data between systems to ensure that packets are successfully transmitted and received. If communication fails or becomes unstable, it may indicate a mismatch in configuration or unsupported hardware along the network path.
Role of Network Devices in Jumbo Frame Handling
Network devices such as switches and routers play a crucial role in handling jumbo frames. These devices must be capable of processing larger packets without dropping or fragmenting them. Modern enterprise-grade equipment typically supports jumbo frames, but configuration may still be required to enable the feature. If intermediate devices do not support the configured MTU size, they can become bottlenecks that disrupt communication.
Importance of Firmware and Software Compatibility
Firmware and software versions can influence whether jumbo frames function correctly. Older firmware may not fully support larger frame sizes, even if the hardware is technically capable. In some cases, updates are required to unlock full jumbo frame functionality. Ensuring that all devices are running compatible and updated firmware helps maintain stability and reduces the risk of unexpected behavior in the network.
Common Mistakes During Configuration
One common mistake when configuring jumbo frames is applying the MTU change to only part of the network. Since jumbo frames require end-to-end consistency, partial configuration can lead to serious communication issues. Another mistake is setting inconsistent MTU values across different devices. Even small differences can cause packet loss or transmission failure. Careful attention to detail is required during setup to avoid these problems.
Troubleshooting Configuration Problems
When issues arise after enabling jumbo frames, troubleshooting usually begins with checking MTU settings across all devices. Identifying mismatched configurations is often the first step in resolving connectivity problems. If settings appear correct, further testing may involve checking hardware compatibility or analyzing packet behavior. Troubleshooting tools can help identify where packet loss or fragmentation is occurring in the network path.
Best Practices for Stable Implementation
To ensure stable implementation of jumbo frames, it is important to follow structured best practices. This includes applying consistent MTU values, verifying hardware support, and testing network performance after configuration changes. Gradual deployment can also help reduce risk by allowing administrators to monitor behavior before full implementation. These practices help ensure that performance improvements are achieved without introducing instability.
When Jumbo Frames Provide Maximum Benefit
Jumbo frames are most effective in environments that handle large and continuous data transfers. These include data centers, storage networks, and high-performance computing systems. In such environments, reducing packet overhead and improving throughput can significantly enhance performance. However, in smaller or mixed networks, the benefits may be less noticeable, especially if not all devices support the same configuration.
Limitations of Jumbo Frame Usage
Despite their advantages, jumbo frames are not universally suitable. One limitation is compatibility, as not all network devices support larger frame sizes. Another limitation is the complexity of configuration in mixed environments. Additionally, improper setup can lead to performance degradation instead of improvement. These limitations highlight the importance of careful planning before deployment.
Final Technical Consideration Before Understanding Completion
Before fully understanding how jumbo frames fit into modern networking, it is important to recognize their dependency on overall network design and traffic behavior. Jumbo frames are not a universal performance upgrade that can simply be enabled anywhere and expected to improve results automatically. Their effectiveness is closely tied to how data flows within a system, the type of applications being used, and how consistently the network is maintained. In environments where traffic consists mostly of small and frequent exchanges, the advantage of jumbo frames may be minimal, while in environments dominated by large data transfers, the improvement can be more noticeable. This makes it essential to evaluate real network usage patterns before relying on jumbo frames as a performance optimization strategy.
Advanced Use Cases and Network Optimization with Jumbo Frames
Jumbo frames are widely used in environments where large-scale data movement is a constant requirement. One of the most common advanced use cases is in data centers, where massive amounts of information flow between servers, storage systems, and virtual machines. In such environments, reducing the number of packets required for each transfer significantly improves efficiency. This allows systems to handle more simultaneous operations without increasing processing strain on networking devices.
In storage networks, jumbo frames play a critical role in improving data backup and replication processes. When large files are transferred between storage arrays or backup servers, using standard frames can create heavy overhead due to frequent packet handling. Jumbo frames reduce this overhead by packaging more data into each transmission, making backup operations faster and more stable. This is especially important in enterprise systems where large-scale backups run regularly and must complete within limited time windows.
Cloud computing environments also benefit from jumbo frames because of the constant movement of data between virtual machines and backend storage systems. Virtualized infrastructure often generates high internal traffic, even when end users are not actively transferring files. By reducing packet fragmentation and processing load, jumbo frames help improve responsiveness and overall system efficiency in cloud platforms.
High-performance computing systems are another area where jumbo frames provide advantages. These systems often run complex computations that require frequent data exchange between multiple nodes. The reduced overhead from jumbo frames allows faster communication between nodes, improving synchronization and reducing delays in processing tasks. This can be important in scientific computing, simulations, and large-scale data analysis workloads.
Despite these advantages, the effectiveness of jumbo frames depends heavily on proper planning and system-wide consistency. If even one part of the network does not support the configured frame size, it can disrupt the entire data flow. This makes careful design and testing essential before deploying jumbo frames in production environments.
Operational Challenges and Network Behavior with Jumbo Frames
When jumbo frames are introduced into a live network environment, they can change how traffic behaves under different conditions. One operational challenge is that not all applications generate traffic patterns that benefit equally from larger frames. Applications that transmit small, frequent messages may not experience noticeable improvement, because the overhead reduction advantage is minimal in such cases. On the other hand, applications designed for bulk data movement can see more consistent performance gains, but only when the entire network path is properly optimized.
Another important challenge is how network congestion is managed. In some situations, larger frames can temporarily occupy more buffer space within networking devices, especially during peak traffic loads. If the hardware is not designed to handle high-volume jumbo frame traffic efficiently, it may introduce delays rather than reduce them. This means that while jumbo frames reduce packet count, they do not eliminate the need for proper congestion control mechanisms within the network.
Error handling behavior is also slightly different when jumbo frames are in use. If a large frame is dropped due to a transmission error, more data is lost compared to a standard frame, which can lead to higher retransmission costs. This makes reliability and error detection more important in networks using jumbo frames, especially in environments where packet loss can impact performance or data integrity.
In mixed traffic environments, jumbo frames must coexist with standard frames, which adds another layer of complexity. Some networks handle this well through proper segmentation and configuration, while others may experience inefficiencies if traffic is not carefully managed. Ensuring that both frame types can operate smoothly together is essential for maintaining stability in diverse network systems.
Overall, operational behavior in jumbo frame networks is highly dependent on infrastructure quality, traffic type, and configuration discipline. Without proper alignment across all these factors, the expected performance benefits may not fully materialize.
Final Conclusion
Jumbo frames represent a method of improving network efficiency by increasing the size of data packets beyond standard limits. This reduces overhead, improves throughput, and lowers processing demands on network devices. However, successful implementation depends on proper configuration, hardware compatibility, and consistent network settings. When applied correctly, jumbo frames can significantly enhance performance in environments that require high-speed and large-scale data transfer.
