Traffic Shaping Explained: What It Is and How It Works in Networking

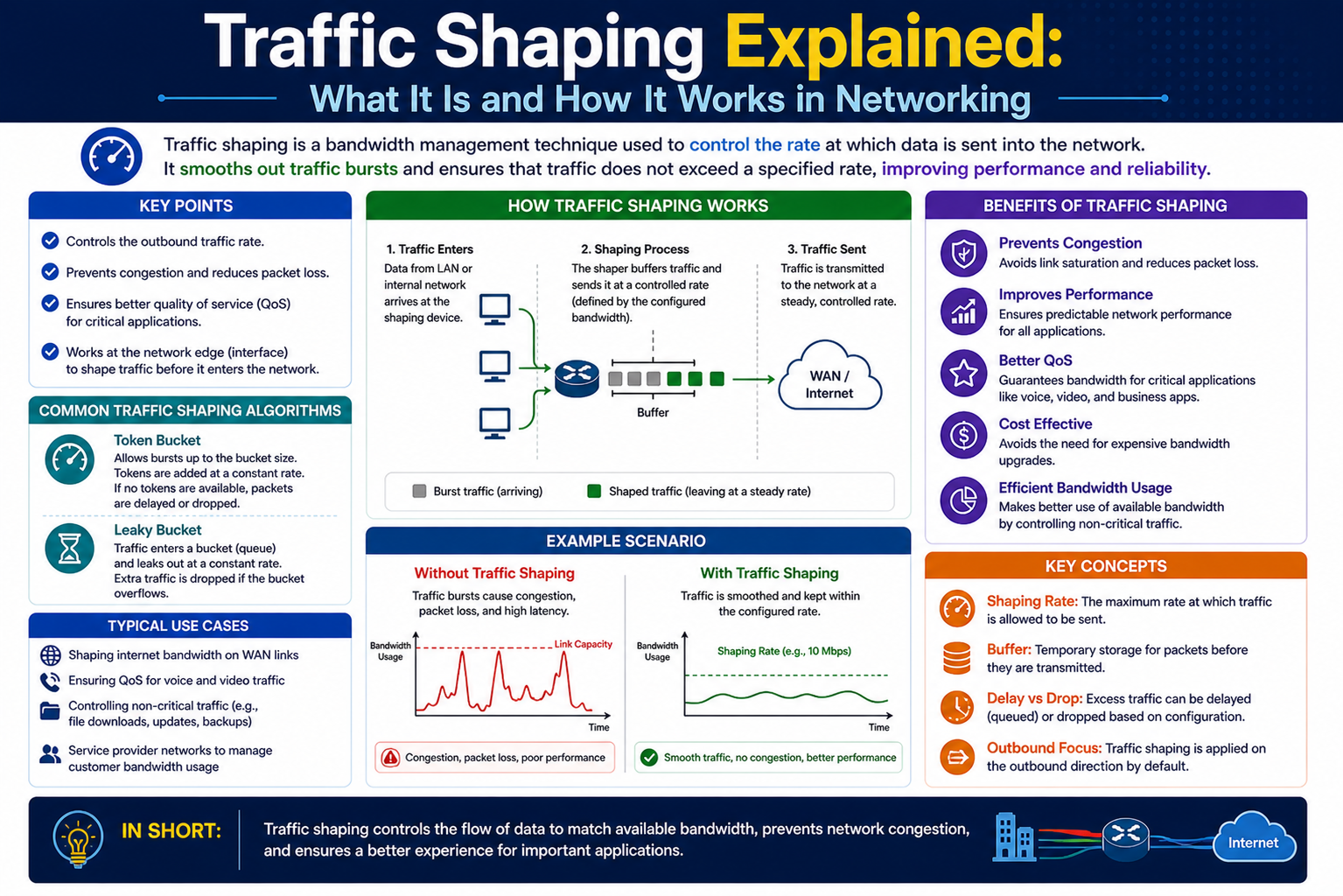

Traffic shaping is a way to control the rate at which a network device sends packets. Instead of immediately dropping every packet that arrives above a configured rate, a shaper can queue excess traffic and release it later, smoothing short bursts on an outbound path. That sounds simple, but the consequences are not: delaying packets can protect a provider link from uncontrolled bursts, while a queue that grows too large can make interactive applications feel unusable. Effective shaping requires a measurable bottleneck, a realistic rate, and a plan for what happens when demand stays too high.

It helps to separate shaping from the wider set of QoS classification, queuing and policing techniques. Classification and marking identify traffic; scheduling decides which queued packets leave first; policing may drop or remark traffic above its allowance; shaping principally regulates the departure rate. One mechanism does not automatically supply the others.

Find the real bottleneck before setting a shaper

Consider an office router with a 100 Mbps physical Ethernet interface connected to a provider circuit contracted for 20 Mbps. A router may be capable of sending frames toward that interface far faster than the upstream service will accept them. A properly supported egress shaping policy can reduce the offered rate and move the queue to a location where the administrator controls scheduling and monitoring.

The first diagnostic question is whether that 20 Mbps service is the actual bottleneck. If the physical port, provider policer, VPN encapsulation, radio link or downstream application is limiting the flow somewhere else, shaping the wrong interface will not solve the problem. Gather interface counters, packet loss, throughput, latency and utilization during the complaint window. Understand both the contracted rate and any documented provider burst allowance before choosing a configured value.

A test performed at idle does not validate the design. Reproduce the combination of a voice call, a file transfer and ordinary web traffic that causes the complaints. If latency increases only when the link saturates, queue location and scheduling may be useful. If the call degrades when the link is nearly empty, investigate wireless interference, application behavior, routing or another fault before adding QoS rules.

What a token bucket and queue actually do

A traffic shaper uses a rate and burst allowance to determine when packets may be transmitted. Token-bucket metering models available sending capacity over time; implementations differ in how tokens are replenished and how bursts are scheduled. A packet that would exceed the configured rate can wait in a queue until the shaper has permission to send it. The result is a smoother egress rate than an unrestricted burst.

This does not mean every queued packet will be delivered. Buffer space is finite, and a continuous incoming rate above the configured outgoing rate eventually creates a backlog. When the queue reaches its limit, traffic can still be dropped. The larger the queue, the more delay and jitter it can introduce before a drop occurs. Shaping exchanges some burst loss for waiting time; it is not a guarantee of zero loss or uninterrupted service.

Policing behaves differently. A policer measures traffic against a committed allowance and can drop or remark traffic that exceeds a configured threshold rather than storing it for later. This may be appropriate for enforcing a contract or boundary, but it can also provoke retransmissions and reduce application throughput. Cisco’s guidance treats shaping as a queue-based output-rate mechanism and policing as a discard/remark decision. The chosen behavior must match the interface direction and actual device support.

Priorities belong in the scheduler, not the rate knob

Suppose the office wants voice traffic to remain usable during a large backup upload. A single shaper that delays every class equally does not necessarily protect voice packets. The policy needs trustworthy classification, a bounded priority class or appropriate weighted scheduling, and queue limits that reflect the application. Voice generally needs low delay and jitter. File transfers may tolerate delay but should not be starved indefinitely.

Classifying traffic by port number alone is often unreliable when applications share HTTPS connections or tunnel traffic. DSCP markings can help when set and trusted at deliberate boundaries. A device should not automatically honor arbitrary high-priority markings supplied by an untrusted client; otherwise a single aggressive application can seize capacity. Use observed applications, security boundaries and policy ownership to decide where traffic is classified and re-marked.

Avoid treating bandwidth reservations as promises of delivered application performance. A voice call can still fail because of packet corruption, endpoint problems, remote congestion or a service outage beyond your control. What a QoS design can do is improve the treatment of selected packets while they traverse the managed bottleneck.

Build and test one defensible policy

Start with a written objective such as ‘keep interactive-call latency within the agreed threshold while an upload saturates our 20 Mbps WAN.’ Measure a no-policy baseline under controlled, approved conditions. Document the interface, provider allowance, MTU/encapsulation overhead where relevant, existing QoS policy, and whether the platform supports hierarchical shaping and per-class queueing. Do not copy configuration commands written for a different IOS or firewall release into a production device.

Apply a rate slightly below the documented limiting rate only when the overhead and provider behavior justify it. Attach classification and queueing policies in the order supported by the platform. A business-critical queue should have enough service to meet observed demand without creating starvation for other classes. Use the platform’s supported policy counters to confirm packets are entering the intended classes; an attractive configuration file is not proof that the policy is attached or effective.

Test at light, moderate and sustained overload. During short bursts, a shaper should smooth the egress rate and may accumulate a small queue. During sustained overload, watch for queue growth, delay, discards, TCP backoff and real application symptoms. Compare p95/p99 latency and loss for interactive traffic, not just average link utilization. Repeat a test after changing one parameter so you can attribute improvement or regression to a known change.

Have rollback criteria ready. If the policy increases voice jitter or creates a prolonged backup queue without measurable benefit, revert the change and inspect the counters again. Rate controls can protect the interface you manage, but they cannot create capacity that a provider has not sold or repair congested segments farther along the path.

Where shaping is useful—and where it is not

Useful cases include constraining egress traffic to a service-provider rate, smoothing bursts before a known policer, and coordinating hierarchical QoS where real-time and bulk data share one outbound bottleneck. In each case, the goal is explicit: control outgoing rate and prioritize delay-sensitive classes within an understood constraint.

Poor uses include applying shaping to fix idle-link latency, assuming a shaper can prioritize packets with no classification or scheduler, using an oversized queue to hide long-term under-capacity, or setting a rate based only on the router’s physical port speed. Shaping does not replace capacity planning, firewall policy, application monitoring, traffic engineering or incident response.

A good change report documents the original symptom, measured bottleneck, configured rate, burst and queue behavior, application outcomes, and rollback result. That report is more convincing than saying the network is ‘optimized.’ The engineer’s success criterion is whether the managed path behaves more predictably under a reproducible workload—and whether the measured improvement survives a realistic busy hour.
