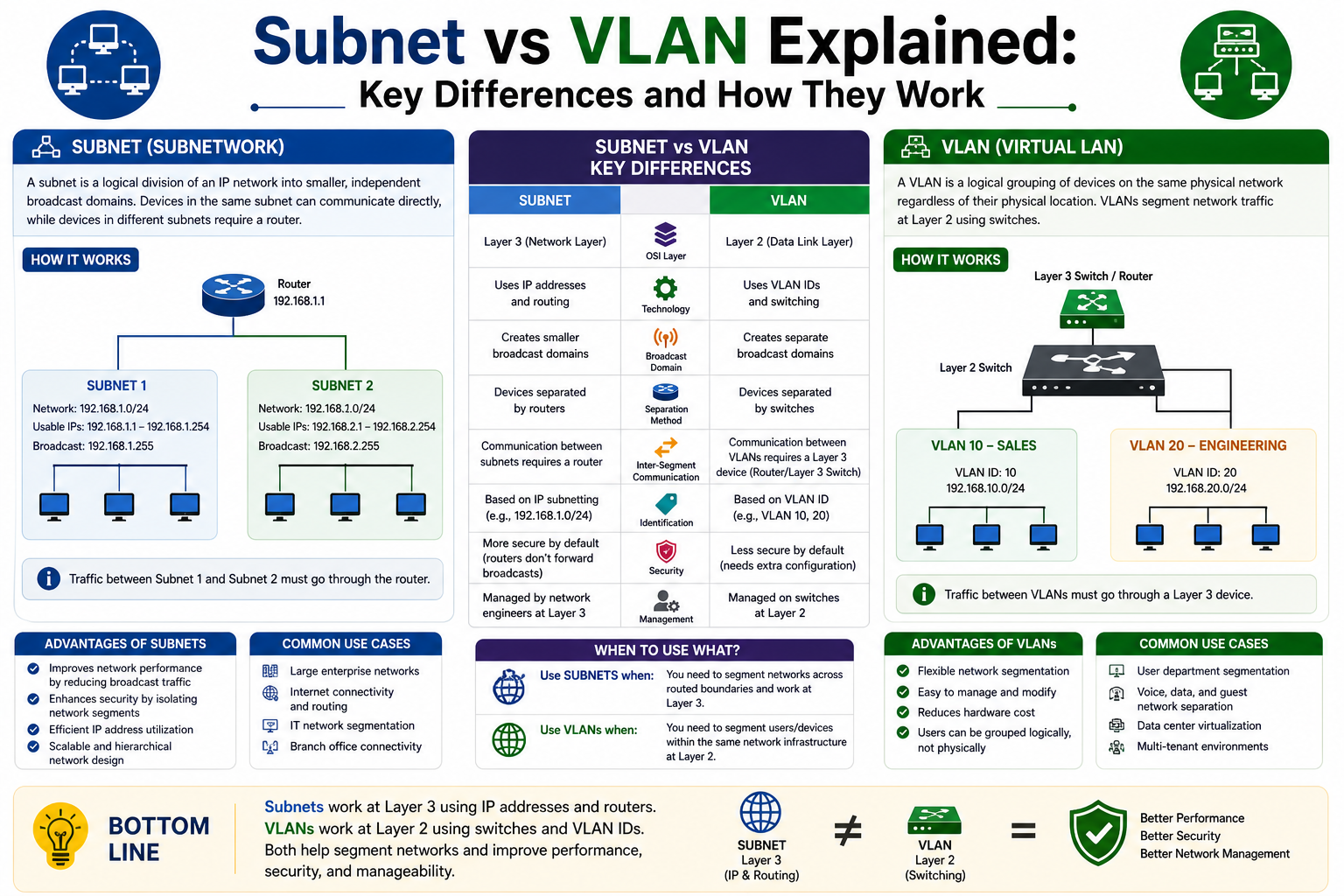

Subnet vs VLAN Explained: Key Differences and How They Work

When you begin exploring networking concepts, subnets and VLANs often appear to serve a similar purpose. Both are used to divide a larger network into smaller, more manageable sections. This surface-level similarity can make them seem interchangeable, but in reality, they operate in fundamentally different ways and at different layers of networking. Grasping the distinction early helps prevent confusion later, especially when dealing with network design, troubleshooting, or security planning. The key lies in understanding how each approach segments traffic and the layer at which that segmentation occurs.

Subnets are logical divisions created at the IP level, while VLANs are logical separations created at the switching level. One works with addressing and routing, while the other focuses on frame separation and broadcast control. Although they often work together in modern networks, they are not the same thing, and confusing them can lead to inefficient or insecure network configurations. Building a strong conceptual foundation starts with understanding the environment in which both operate.

A Clear View of Network Segmentation

Network segmentation is the broader concept that includes both subnetting and VLAN implementation. It refers to breaking a network into smaller parts to improve performance, security, and manageability. Without segmentation, every device would exist in a single large broadcast domain, leading to excessive traffic, reduced efficiency, and increased vulnerability to attacks.

Segmentation reduces unnecessary communication between devices. Instead of every device receiving every broadcast message, only a subset of devices within a segment will process that traffic. This containment improves speed and reduces congestion. It also limits the spread of potential threats, making segmentation a critical strategy in network design.

Subnets and VLANs both achieve segmentation, but they do so differently. VLANs segment networks at the switching level by isolating broadcast domains, while subnets segment networks at the IP layer by controlling how devices are addressed and routed. Understanding this distinction is essential before diving deeper into either concept.

The Role of the OSI Model in Understanding Networking

To properly differentiate between subnets and VLANs, it is necessary to understand the layered structure of networking. The OSI model provides a framework that explains how data moves through a network. Each layer has a specific role, and different technologies operate at different layers.

The lower layers deal with physical transmission and direct device communication, while the upper layers focus on data formatting, sessions, and applications. Subnets and VLANs exist in the middle of this model, but at different layers. VLANs operate at the data link layer, where switches manage frames and MAC addresses. Subnets operate at the network layer, where routers manage IP addresses and determine paths for data.

This layered approach helps explain why VLANs and subnets behave differently. Since they function at different layers, they solve different problems. VLANs control how devices are grouped within a local network, while subnets control how devices are addressed and how data travels between networks.

How VLANs Create Logical Network Boundaries.

VLANs provide a way to logically separate devices on the same physical network. Instead of relying on physical separation, VLANs allow multiple isolated networks to exist on a single switch. This means devices can be grouped based on function, department, or security requirements rather than physical location.

A VLAN essentially creates its own broadcast domain. Devices within the same VLAN can communicate directly with each other, but they cannot communicate with devices in another VLAN without routing. This isolation improves both performance and security by limiting unnecessary traffic and restricting access between groups.

One of the most powerful aspects of VLANs is flexibility. Devices can be moved between VLANs without changing physical connections. This makes it easier to reorganize networks as business needs change. It also allows administrators to design networks based on logical relationships rather than physical layouts.

Another important feature is that multiple VLANs can exist on a single switch, and a single VLAN can span multiple switches. This scalability allows networks to grow without requiring a complete redesign. VLAN tagging techniques ensure that traffic is properly identified as it moves across network infrastructure.

Security Advantages of VLAN Implementation

Security is another major advantage of VLANs. By isolating devices into separate groups, VLANs limit access to sensitive information. Devices in one VLAN cannot directly communicate with devices in another VLAN unless specific routing rules are configured.

This makes VLANs an effective tool for implementing access control policies. For example, a guest network can be placed in its own VLAN, preventing it from accessing internal resources. Similarly, departments within an organization can be separated to ensure that only authorized users can access certain data.

VLANs also help contain potential security threats. If a device becomes compromised, the impact can be limited to its VLAN. This containment reduces the risk of a network-wide breach and provides administrators with more time to respond.

However, VLANs are not a complete security solution on their own. They must be combined with proper routing policies, firewall rules, and monitoring systems to provide comprehensive protection. Still, they serve as an important first layer of defense.

Understanding the Limitations of VLANs.

While VLANs offer many benefits, they also have limitations. One of the most important is that devices in different VLANs cannot communicate without a routing mechanism. This means that a router or a Layer 3 switch is required to enable communication between VLANs.

This requirement can introduce complexity, especially in larger networks. Proper configuration is necessary to ensure that traffic flows correctly between VLANs while maintaining security. Misconfigurations can lead to communication issues or unintended access.

Another limitation is that VLANs operate at the data link layer. This means they do not directly control IP addressing or routing decisions. They can separate traffic, but they do not determine how that traffic moves between networks. This is where subnets come into play.

Understanding these limitations helps clarify why VLANs and subnets are often used together. Each addresses a different aspect of network design, and combining them provides a more complete solution.

How Subnets Define Network Structure

Subnets work at the network layer and focus on IP addressing. They divide a larger network into smaller logical networks by splitting the IP address space. Each subnet has its own range of IP addresses, and devices within that range can communicate directly with each other.

An IP address consists of two parts: the network portion and the host portion. Subnetting involves borrowing bits from the host portion to create additional network segments. This allows a single network to be divided into multiple smaller networks.

Each subnet operates as its own logical network. Devices within the same subnet can communicate directly, while communication between subnets requires routing. This structure helps organize networks and control traffic flow.

Subnetting is essential for managing large networks. Without it, the number of devices in a single network would become unmanageable. By creating smaller subnets, administrators can improve efficiency and maintain better control over network resources.

The Relationship Between VLANs and Subnets.

Although VLANs and subnets are different, they are often used together. A common design approach is to assign one subnet to each VLAN. This creates a clear mapping between Layer 2 segmentation and Layer 3 addressing.

This alignment simplifies network management. Each VLAN represents a distinct broadcast domain, and each subnet represents a distinct IP network. When these boundaries match, it becomes easier to configure routing, apply security policies, and troubleshoot issues.

However, it is important to understand that this relationship is not mandatory. VLANs and subnets can be designed independently, but aligning them is considered best practice in most scenarios.

Using both together provides the benefits of each approach. VLANs handle traffic isolation at the switching level, while subnets handle addressing and routing at the network level. This combination creates a robust and flexible network architecture that can adapt to changing needs.

Deeper Insight Into VLAN Operation and Frame Handling

To fully understand how VLANs function, it is important to look at how data is actually handled at the switching level. When a device sends data across a network, that data is encapsulated into frames. These frames contain source and destination MAC addresses, which switches use to determine where the data should be sent. VLANs influence this process by adding a logical identifier to each frame, allowing switches to distinguish between different virtual networks even when they share the same physical infrastructure.

This identification process ensures that frames are only delivered to devices within the same VLAN. Even if multiple VLANs exist on the same switch, the switch keeps their traffic separate by using VLAN tags. These tags act as markers that tell the switch which VLAN the frame belongs to. As a result, traffic from one VLAN never mixes with another unless explicitly allowed through routing.

This mechanism is what makes VLANs so powerful. Instead of relying on physical separation, VLANs enforce logical boundaries through frame tagging and filtering. This allows networks to be designed with flexibility while maintaining strict control over communication paths.

Understanding Access Ports and Trunk Links.

In a VLAN-enabled network, not all switch ports behave the same way. Some ports are configured to belong to a single VLAN, while others carry traffic for multiple VLANs. These differences are essential for maintaining proper communication within and across network segments.

An access port is assigned to a single VLAN. Devices such as computers, printers, and servers typically connect to these ports. When a frame enters an access port, the switch automatically associates it with the configured VLAN. The device itself is unaware of the VLAN structure, making this setup simple and efficient for end-user devices.

A trunk link, on the other hand, is used to carry traffic for multiple VLANs between switches or between a switch and a routing device. Trunk links use tagging to identify which VLAN each frame belongs to. This allows multiple VLANs to share the same physical connection without losing their separation.

Trunking is especially important in larger networks where multiple switches are connected. Without trunk links, each VLAN would require its own dedicated connection, which would be inefficient and impractical. By using trunking, networks can scale while maintaining clear segmentation.

Inter-VLAN Communication and Routing Requirements

While VLANs provide isolation, there are many situations where communication between VLANs is necessary. For example, users in different departments may need to access shared resources such as servers or printers. Since VLANs cannot communicate directly at the data link layer, a routing mechanism is required to enable this interaction.

Inter-VLAN communication is typically handled by a router or a Layer 3 switch. These devices operate at the network layer and are capable of routing traffic between different VLANs. Each VLAN is assigned its own IP subnet, and the routing device acts as a gateway for devices within that VLAN.

When a device needs to communicate with another device in a different VLAN, it sends the data to its default gateway. The routing device then determines the best path and forwards the data to the appropriate VLAN. This process allows controlled communication while maintaining the isolation benefits of VLANs.

Proper configuration of inter-VLAN routing is essential. Access control lists and routing policies can be applied to restrict or allow traffic between VLANs, providing an additional layer of security and control.

How Subnets Control Traffic Flow.

Subnets play a crucial role in controlling how traffic moves through a network. By dividing a network into smaller segments, they limit the scope of communication and ensure that data is routed efficiently.

When a device sends data, it first determines whether the destination is within its own subnet. If it is, the data is sent directly. If not, the data is forwarded to a router, which then determines the best path to the destination subnet.

This process reduces unnecessary traffic and ensures that data is only sent where it is needed. It also allows for more precise control over network policies. Routers can apply filtering rules, prioritize certain types of traffic, and enforce security measures.

Traffic control becomes increasingly important as networks grow. Without proper subnetting, data can become congested, leading to delays and reduced performance. By organizing networks into logical segments, subnets help maintain efficiency and reliability.

Challenges and Common Misconceptions

Despite their importance, subnets and VLANs are often misunderstood. One common misconception is that they serve the same purpose. While both involve segmentation, they operate at different layers and address different aspects of networking.

Another challenge is configuration complexity. Both VLANs and subnets require careful planning and accurate implementation. Mistakes can lead to communication failures, security vulnerabilities, or inefficient use of resources.

There is also the issue of visibility. VLANs can hide traffic at the data link layer, while subnets control routing at the network layer. Without proper monitoring tools, it can be difficult to track how data moves through the network.

Understanding these challenges helps in designing better networks. By recognizing the strengths and limitations of each approach, administrators can use them effectively and avoid common pitfalls.

How Misalignment Between VLANs and Subnets Causes Issues.

When VLANs and subnets are not aligned properly, network issues can arise. For example, placing devices from different subnets in the same VLAN can lead to unnecessary broadcast traffic and inefficient routing.

Similarly, assigning a single subnet across multiple VLANs without proper routing can cause communication failures. Devices may be unable to reach each other even though they appear to be part of the same network.

Alignment ensures that each VLAN corresponds to a specific subnet. This consistency simplifies configuration and reduces the risk of errors. It also makes troubleshooting more straightforward, as issues can be traced more easily.

Misalignment often occurs due to poor planning or lack of understanding. Taking the time to design networks carefully can prevent these problems and ensure smooth operation.

Designing Networks with Both VLANs and Subnets in Mind

When building a modern network, relying on either VLANs or subnets alone is rarely enough. The most effective designs combine both to create a layered structure that balances performance, scalability, and security. VLANs handle segmentation at the switching level, while subnets define how addressing and routing are organized. When these two are aligned properly, the result is a network that is easier to manage and far more efficient.

A common design approach is to map each VLAN to a specific subnet. This creates a clear boundary where Layer 2 segmentation matches Layer 3 addressing. When a device connects to a VLAN, it automatically belongs to the corresponding subnet. This alignment reduces confusion and ensures that routing decisions are predictable. It also simplifies troubleshooting, because issues can be isolated to a single segment without affecting the entire network.

Careful planning at this stage prevents long-term problems. Choosing logical groupings based on departments, services, or device types allows the network to scale without constant restructuring. Instead of reacting to growth, a well-designed structure anticipates it.

Routing Strategies for Interconnected Segments.

Routing plays a central role in connecting multiple subnets and VLANs. There are different strategies for handling this, depending on the size and complexity of the network. Smaller environments may rely on a single router, while larger networks often use Layer 3 switches to handle routing internally.

One common method is router-on-a-stick, where a single physical interface on a router handles traffic for multiple VLANs using subinterfaces. Each subinterface is associated with a specific VLAN and subnet, allowing the router to route traffic between them. This approach is efficient for smaller setups but can become a bottleneck as traffic increases.

Layer 3 switching offers a more scalable solution. In this setup, routing is performed directly on the switch, reducing the need for external devices. This improves performance and simplifies the network design. It also allows for faster communication between VLANs, as traffic does not need to leave the switch to be routed.

Choosing the right routing strategy depends on factors such as network size, traffic volume, and performance requirements. Understanding these options helps in designing a system that meets both current and future needs.

Troubleshooting Common VLAN and Subnet Issues

Even well-designed networks can encounter problems. Understanding how VLANs and subnets interact is crucial for effective troubleshooting. Many issues arise from misconfigurations, such as incorrect VLAN assignments, mismatched subnet masks, or missing routing rules.

One common problem is the inability of devices to communicate across VLANs. This often points to an issue with inter-VLAN routing or gateway configuration. Checking whether the routing device is properly configured and whether access policies allow the traffic can quickly identify the root cause.

Another frequent issue is incorrect IP addressing. If a device is assigned an address that does not match its subnet, it may be unable to communicate with others. Verifying IP settings, subnet masks, and gateway addresses is an essential step in diagnosing connectivity problems.

VLAN-related issues can also stem from trunk misconfigurations. If VLAN tags are not being handled correctly, traffic may not reach its intended destination. Ensuring that trunk links are properly configured and that VLAN IDs match across devices helps prevent such problems.

A structured troubleshooting approach saves time and reduces frustration. By isolating issues layer by layer, administrators can pinpoint the exact cause and resolve it efficiently.

Performance Optimization Through Proper Segmentation.

Performance is directly influenced by how well a network is segmented. VLANs reduce unnecessary broadcast traffic, while subnets limit the scope of communication. Together, they create an environment where data flows efficiently and predictably.

Optimizing performance involves more than just dividing the network. It requires understanding traffic patterns and placing devices in the appropriate segments. High-traffic systems, such as servers, may need dedicated VLANs and subnets to ensure they receive sufficient bandwidth.

Quality of service policies can further enhance performance by prioritizing critical traffic. When combined with VLAN segmentation, these policies ensure that important applications are not affected by less critical data.

Regular monitoring is also important. Network conditions can change over time, and adjustments may be needed to maintain optimal performance. By continuously analyzing traffic and usage patterns, administrators can make informed decisions about segmentation and resource allocation.

Balancing Simplicity and Complexity in Network Design

While advanced features can enhance a network, they can also introduce complexity. Finding the right balance is crucial. Overly simple designs may lack flexibility, while overly complex ones can be difficult to manage and troubleshoot.

VLANs and subnets should be implemented with clear objectives in mind. Each segment should have a defined purpose, whether it is improving performance, enhancing security, or organizing resources. Avoiding unnecessary segmentation helps keep the network manageable.

Documentation plays a vital role in maintaining this balance. Clear records of VLAN assignments, subnet structures, and routing configurations make it easier to understand and modify the network. This is especially important in environments where multiple administrators are involved.

A well-balanced design is one that meets requirements without adding unnecessary complications. It allows the network to function efficiently while remaining easy to maintain.
