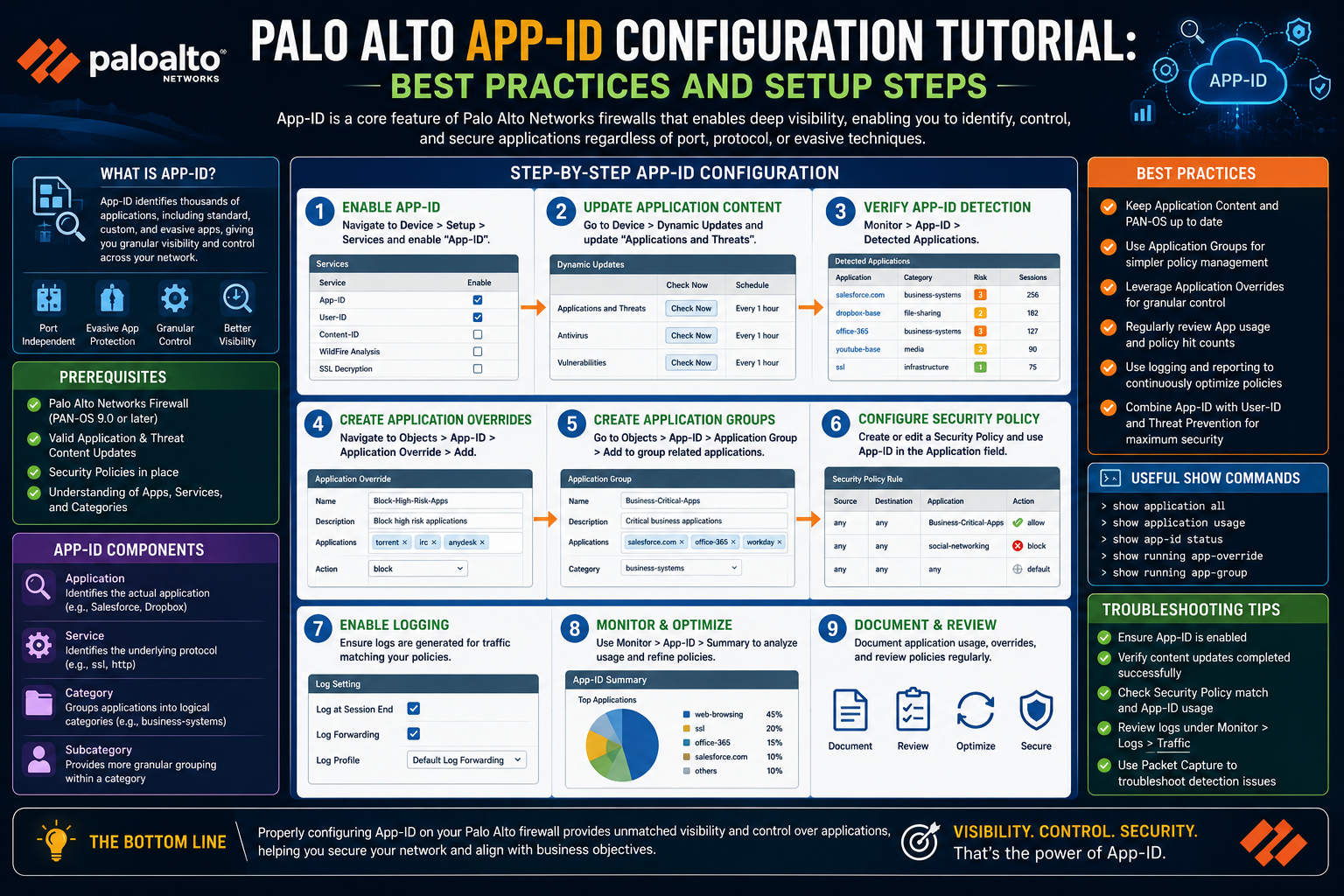

Palo Alto App-ID Configuration Tutorial: Best Practices and Setup Steps

Palo Alto Networks App-ID identifies applications from session characteristics and signatures so a next-generation firewall can enforce rules based on the application rather than only on port numbers. A workable configuration guide has to connect that classification with zones, application dependencies, service restrictions, Security Profiles, logs and safe change control. It also has to acknowledge that encrypted or unfamiliar traffic is not always identified with perfect certainty.

Consider a business application that moved from a private server to a SaaS platform. The migration changes destinations and perhaps encryption, while the team still needs a narrow allow policy. The objective is not simply to observe an ‘app name’; it is to verify the resulting application, destination zone and users, authorize the necessary services, and investigate unknown or blocked sessions without opening all HTTPS traffic.

Begin with what the firewall already observes

Identify the firewall’s PAN-OS version, current content updates and intended source and destination security zones. Check existing Traffic logs, App Scope or application visibility tools for the client, destination, observed App-ID, action and session end reason. Note when classification changes as the connection progresses. Use known test users and an approved maintenance window rather than changing a broad production rule from a single log entry.

A label such as web-browsing, ssl or unknown-tcp is evidence of current classification, not proof of which business application generated the session. Application updates, custom applications, traffic that remains encrypted and dependencies on related applications can change the result. Document the observed identifiers before deciding a rule is broken.

Identify the relevant rule and its priority

Security policy uses ordered matching criteria including source and destination zones, addresses, users when available, applications and services. A more specific rule may be shadowed by an earlier broad rule; check rule usage and matching logs rather than only inspecting a rule’s name. The predefined Palo Alto defaults normally allow intrazone sessions and deny interzone sessions when no user rule matches; do not assume an unconditional global deny.

Security Profiles perform further inspection on traffic allowed by a rule, and a profile can still block a session despite the policy action being Allow. Keep rule matching separate from threat prevention, URL filtering and decryption questions. Reading those dimensions together is more useful than repeatedly toggling App-ID settings.

Use application-default appropriately

Where application signatures and use cases support it, choose application-default for the service setting so applications are ordinarily confined to their expected ports. Application-aware security policy also requires checking App-ID classification, security-profile attachment, policy ordering and traffic evidence before broadening access. A failed transaction may reflect identification or routing rather than a need for a permissive service override.

Do not interpret ‘application-default’ as a universal fix. Applications with nonstandard ports or proprietary behavior may need a documented exception or custom application signature after review. Avoid an unrestricted service Any rule simply because the first test fails. Record the intended user population, source, destination and expected application dependencies.

Encrypted applications and unknown traffic

Encrypted traffic may be classified with limited context. Where a lawful, approved decryption policy is in place, more application signatures may become available; without it, the firewall may not observe the encrypted payload needed for a finer determination. Decryption is not a default safety obligation: certificate trust, privacy, exclusions, performance and business constraints matter.

For persistent unknown-tcp or unknown-udp logs, confirm content versions, session completion, port behavior and whether the application is internal or new. The vendor supports custom application definitions or signature requests in appropriate cases. Avoid using broad Application Override rules as a shortcut: overrides can limit layer-7 analysis and threat inspection.

Test and approve a narrow change

Draft a policy with minimal zones, addresses, user scope, App-ID and required service. Attach appropriate Security Profiles on allowed traffic. Use application dependency information and a controlled test plan for normal access, failed authorization and anticipated exceptions. Verify the effective policy action and the actual application in the resulting logs, including whether profiles changed the outcome.

Have an authorized reviewer compare the proposed rule to current usage and more general rules above it. Document change ticket, business owner, selected devices, risk, validation and rollback. Confirm the firewall running configuration and any management platform’s commit or device-push status: a proposed change is not active just because it has been saved in an interface.

Worked case: an approved app appears as SSL

A finance team uses an approved SaaS platform, but a firewall log initially names the traffic ssl. Before allowing arbitrary HTTPS, compare the IP, destination hostname or certificate metadata available under the current privacy policy, source user, target zone, application dependencies and exact content version. The app may need additional exchanges before the classification becomes more specific, or encrypted contents may remain opaque. A narrow working exception should have a documented owner and expiry rather than becoming a permanent broad rule.

If a security profile blocks the session even though an Allow policy matches, investigate that profile’s event and decision separately. Decryption exclusions, certificate problems, application signature updates and real server-side denials can produce superficially similar symptoms. Use a repeatable test and a known successful comparison, not a single traffic log, to decide whether to change App-ID policy, TLS handling or application configuration.

After the change, verify the deployed rule order, commit state and end-of-session logs from the relevant firewall. Confirm that the finance app works for the intended users and that the same rule does not suddenly permit unrelated generic SSL connections. Collect objective evidence for change approval and for a potential rollback.

Operational distinctions that prevent wrong fixes

App-ID answers ‘which application can this session be classified as?’ User-ID can add the mapped user when trustworthy identity signals exist. NAT and zones determine which addresses and network boundaries the policy sees. Security Profiles inspect permitted traffic for threats or forbidden content. These are complementary controls with separate data sources and failure modes; inaccurate User-ID mapping cannot be repaired by widening an App-ID rule.

Application-default limits expected service ports, but does not magically secure every app dependency or eliminate the need for security profiles. Unknown-app handling can involve a vendor signature request or a carefully defined custom app; an Application Override may bypass meaningful layer-7 processing and should not be the normal first response. Likewise, decryption should respect legal, certificate, compatibility and privacy constraints. Test chosen controls rather than describing signatures as perfect.

A useful handoff contains the source zone, destination zone, source identity or IP, expected App-ID, relevant service, matching rule, observed profile action, change ticket, validation results and rollback evidence. The documentation should tell the next operator what was observed and what remains uncertain. That is how an App-ID configuration tutorial becomes operationally useful instead of a generic product endorsement.

Troubleshoot without opening the floodgates

If users report failure, distinguish name resolution, routing, NAT, session initiation, App-ID classification, Security Profile blocking and server-side authorization. A blocked session can mean the rule worked. Collect a small approved set of current logs and compare it with a successful test, watching for ports, zones, users and changing application identifiers.

Roll back an ineffective change through the documented platform procedure and verify the resulting deployed state. Keep a record of traffic that remained unknown or required exceptions. The useful outcome is a verifiable narrow policy, not a promise that App-ID guarantees perfect visibility across every encrypted or evasive session.
