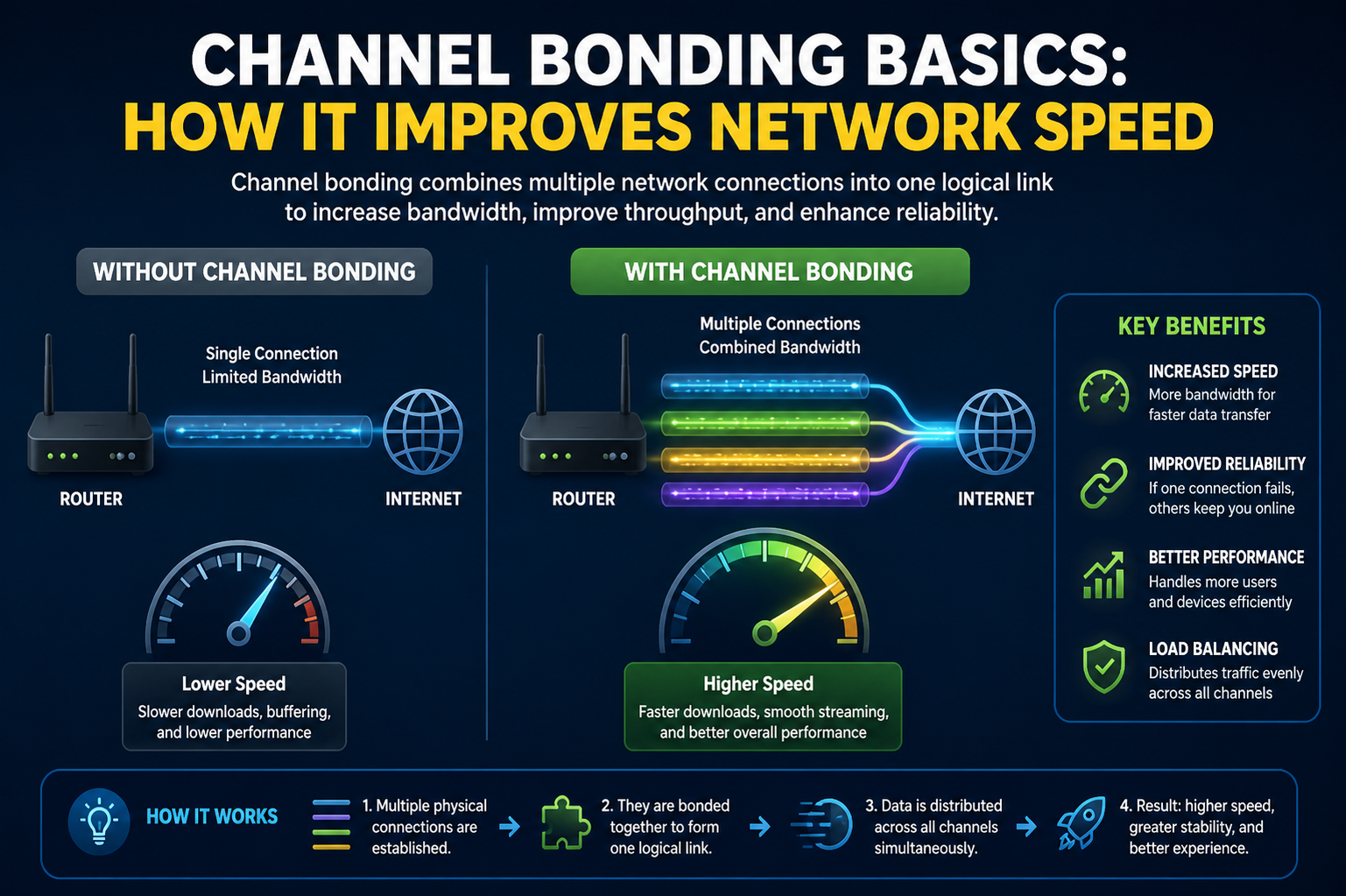

Channel Bonding Basics: How It Improves Network Speed

Channel bonding is often sold as a simple promise: combine two connections and get twice the speed with uninterrupted service. That promise hides three different technologies. An Ethernet link aggregation group, a router balancing traffic across two internet providers, and a multipath tunnel that splits one application session across transports are not interchangeable. The useful question is not merely how many cables you have. It is which traffic gets assigned to which link, what the far end understands, and what happens when a member fails.

First distinguish LAN aggregation from internet bonding

On a LAN, an Ethernet port channel groups several physical switch links into one logical interface. IEEE 802.3ad-style aggregation, commonly negotiated using LACP, is a familiar example. Both ends must support compatible aggregation settings. A three-member group is not the same thing as three unrelated broadband providers: independent ISPs do not normally form one shared LACP domain across the internet.

A dual-WAN router usually offers a different feature. It can route some sessions over ISP A and others over ISP B, giving a household or office more aggregate capacity when multiple clients are active. A single ordinary TCP download still typically uses just one WAN connection unless the application, transport or an intermediary bonding service supports true multipath operation. Calling all these arrangements “channel bonding” leads buyers to expect speeds that their chosen architecture cannot deliver.

What per-flow hashing does to your speed test

Consider two 1 Gbit/s Ethernet uplinks in a port channel. The aggregate can carry traffic from several flows across both physical members, subject to switch capacity and link-selection behavior. But ordinary hash-based distribution keeps each flow on one member to avoid reordering. One file transfer may therefore top out near one member’s practical throughput even while the other is nearly idle. Two independent transfers may use different links, although collisions in the hash can leave traffic unevenly distributed.

Do not judge an aggregation group only by a single-client speed test. Examine member counters while running several simultaneous flows between different endpoints. Check the hashing keys supported by the actual switch: some use addresses, while others can include transport ports. Port-channel configuration, VLAN consistency, speed/duplex settings and peer compatibility matter as much as the physical link count.

When several ISPs really can accelerate one session

Packet- or session-level internet bonding requires something beyond ordinary local load balancing. A multipath-aware transport, a VPN/bonding gateway, or another compatible far-end service must coordinate traffic that arrives over the separate paths. Without that receiver-side participation, dividing one stream into independently routed packets can break address and session assumptions or create severe reordering.

For example, a remote office could establish two internet uplinks to a provider-managed bonding endpoint. The client and endpoint coordinate the paths so a supported session can use both. That design has real trade-offs: tunnel overhead, a dependency on the aggregator, possible extra subscription costs and unequal path latency. It should be tested as a particular product architecture, not assumed as a property of any two ethernet or mobile links.

Failover is not the same as zero interruption

An active/backup bond may keep a network interface logically available when one member goes down. A port channel may reassign flows among remaining members. Multi-WAN equipment may redirect new sessions to a surviving ISP. None of these statements guarantees every existing session remains intact. Route convergence, MAC or neighbor-cache changes, NAT state, source-address changes and application timeout behavior can interrupt traffic.

Failover also changes the capacity budget. If two 100 Mbit/s WAN circuits are heavily utilized and one disappears, the remaining circuit cannot somehow preserve 200 Mbit/s of demand. Queuing, packet loss or increased latency should be part of the failure test. Redundancy improves the options available to a network; it does not eliminate every failure mode.

Design the right test before buying hardware

Start by recording the real objective. If ten employees make many simultaneous cloud connections, flow distribution may raise total throughput without accelerating any one transfer. If one video uplink must survive cellular dropouts, you may need a transport designed to preserve sessions across both paths. If the goal is switch-to-switch redundancy in a data center, a properly negotiated port channel or resilient network topology is the relevant design.

Record the baseline for each path separately: throughput, packet loss, round-trip latency, jitter and any carrier data limits. Then test multiple concurrent transfers, a single large transfer and a real application session. Inspect per-link byte counters and the active link decision, not just the public speed-test headline. Deliberately disconnect each link in turn and measure how long the traffic stalls, what the surviving path can carry and whether the application’s session has to reconnect.

Different WAN circuits can have different latency and jitter. A scheme that indiscriminately sends alternate packets across a fast fiber path and a slow cellular path may introduce reordering that harms TCP performance. Packet scheduling, reorder buffers and encryption overhead should be treated as measured engineering choices.

Operational and security boundaries

Each ISP connection remains an exposure that must be secured. Keep firewall policies, egress identity, VPN configuration and inbound access controls consistent with the intended design. A bonding appliance’s control plane and remote relay are additional components to update, monitor and include in incident response. Do not assume traffic is encrypted merely because it uses multiple links.

Document which network failures are detected automatically and which require intervention. Check whether the system knows the difference between a physically active interface and a working end-to-end route. Monitor loss, latency, member utilization and state transitions. During planned changes, verify that all members use the same peer agreement and that rollback does not leave a half-configured bundle.

Three common designs and their trade-offs

Two switch uplinks: Both interfaces terminate on a compatible aggregation peer. This can provide switch-path redundancy and higher total capacity across several flows, but not a guaranteed doubled speed for a single session. The link status and LACP state should agree on both ends. Where links terminate on different physical switches, the multi-chassis aggregation feature and its failure modes must be understood rather than assumed.

Fiber plus cellular: A dual-WAN router can send new office sessions over either provider and fail over when the preferred route fails. When the source public IP changes, an existing session may need to reconnect. An LTE path may cost much more per gigabyte, and its jitter can be unsuitable for a real-time video uplink. Policy routing and application-specific health checks often matter more than raw combined bandwidth.

One large media transfer across both paths: If the requirement really is a single application stream exceeding one line’s speed, test a supported multipath or remote-gateway implementation. The far end must reconstruct or coordinate the session. Determine whether the gateway is another single point of failure, whether encryption applies to the whole path, and whether the provider charges by traffic volume.

A useful acceptance test states its success criteria beforehand: aggregate throughput with four independent transfers, single-flow maximum, failover interruption in seconds, usable throughput after a failure, and packet loss during path recovery. Record the result with each member’s own interface statistics. Without that evidence, a vendor’s “bonded 2 Gbit/s” label is only a theoretical capacity description.

The decision rule is straightforward: choose a LAN aggregate for distributed LAN capacity, multi-WAN balancing for multiple independent internet sessions, or a genuine multipath design when one session must use more than one path. State the expected per-flow limit and failure behavior before describing the improvement as “bonding.”
